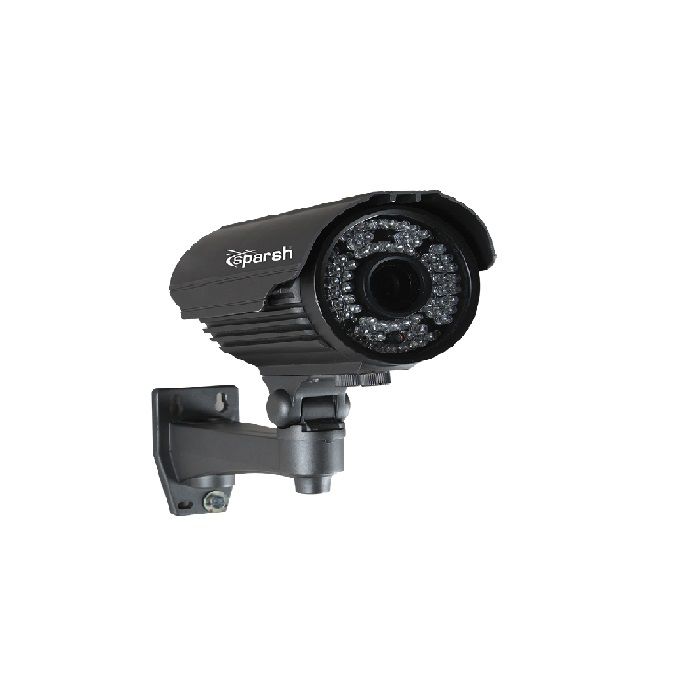

VF Bullet Camera 2MP
Key feature
• 1/2.7” 2MP Progressive CMOS Sensor
• H.265+ & H.265 Dual-Stream Encoding
• 9-22 mm Lens,2 MP Lens
• IR Distance 40-60 Mtr
• IP66 Compliant
• PoE Enabled
|
Camera |
||
|
Image Sensor |
1/2.7” 2MP Progressive CMOS Sensor |
|
|
Effective Pixels |
1920(H)x1080(V) |
|
|
Minimum Illumination |
Color: 0.01 Lux @F1.2, B/W: 0.001 [email protected], 0 Lux at IR ON |
|
|
S/N Ratio |
>60dB |
|
|
IR Distance |
IR Distance 40-60Mtr |
|
|
Shutter Speed |
Auto, Manual Mode: 1/50 sec 1/10000 sec |
|
|
WDR |
80db |
|
|
IR On/Off Control |
Auto/ Manual |
|
|
IR LEDs |
72 Smart LED |
|
|
Lens |
||
|
Lens Type |
Fixed |
|
|
Mount Type |
M12 |
|
|
Focal Length |
9-22mm Lens |
|
|
Max. Aperture |
F1.8 |
|
|
Angle of View |
Horizontal Angle- 81°, Vertical Angle- 64°, Diagonal Angle- 81° |
|
|
Focus Control |
Fixed |
|
|
Video |
||
|
Compression |
H.264 Baseline/Main Profile/High Profile Code, H.265 Main Profile |
|
|
Smart Codec |
Support H.265+/H.264+ |
|
|
Streaming Capability |
2 Streams |
|
|
Resolution |
1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)//VGA (640×480)/ CIF(352×288/352×240) |
|
|
Streams |
Mainstream: 2MP 1920(H)x1080(V), 1080@30fps, Sub Stream: D1 (704(H)x576(V)30 FPS |
|
|
Frame Rate |
1 ~ 25/30fps |
|
|
Bit Rate Control |
CBR/VBR |
|
|
Bit Rate |
Primary 1024-8192Kb/s, Secondary Stream: 341-1706Kb/s |
|
|
Day/Night |
Automatic/Color/Black and white |
|
|
Exposure Mode |
Automatic/Manual-(1/50-1/10000) |
|
|
BLC Mode |
On/Off |
|
|
Profiles |
Auto, Low Light Priority, High Light Priority |
|
|
White Balance |
Indoor/Outdoor/Automatic |
|
|
Gain Control |
Auto/Manual |
|
|
Noise Reduction |
Auto, 2D/3D (1-6 Levels) |
|
|
Electronic Image |
Support |
|
|
Smart IR |
Support |
|
|
Digital Zoom |
16X, Areas selection with Mouse |
|
|
Anti-Flicker |
On/Off |
|
|
AE reference |
1-255 Level |
|
|
AE Sensitivity |
1-10 Level |
|
|
Flip |
Off / On |
|
|
IR reverse |
Support |
|
|
Mirror |
Off / On |
|
|
Text Overlay |
Title, Date & Time, Weekday |
|
|
Privacy Masking |
Yes (4 zones) |
|
|
Events |
||
|
Motion Detection |
22X18 Zones |
|
|
Video Tempering |
Support |
|
|
Event Actions |
Record alarm, Linkage alarm output, Sound alarm, Email link, Upload FTP, Snapshot |
|
|
Event Recording |
Pre Record- 5-30 Sec, Post Record 1-120 Minute |
|
|
PTZ |
||
|
Pan/Tilt Range |
Pan:0° ~360°; Tilt:0° ~90°; Rotation:0° ~360° |
|
|
Safety |
||
|
ONVIF Authentication |
ON, Off |
|
|
RTSP Authentication |
Digest, None |
|
|
Audio |
||
|
Compression |
G.711 |
|
|
Talk Back |
Support (Optional) |
|
|
Network |
|
|
|
Ethernet |
10/100M adaptive Ethernet interface |
|
|
Protocol |
TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPNP, SMTP, IGMP,802.1X, IPV6, IPv4 |
|
|
Interoperability |
ONVIF Profile S & G |
|
|
Max. User Access |
20 Users |
|
|
Edge Storage |
Local PC for instant recording, one click Snapshot, one clicks triple Snapshot |
|
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
|
Management Software |
Sparsh VMS |
|
|
Smart Phone |
Supports SVMS APP for iPhone, Android |
|
|
Interface |
||
|
Audio |
1 IN/1 Out (Optional) |
|
|
Alarm |
1IN/1 Out (Optional) |
|
|
General |
|
|
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
|
Storage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
|
Ingress protection |
IP66 Complaint |
|
|
Vandalism protection |
NA |
|
|
Power Supply |
DC 12V ± 10%, Optional: PoE (802.3af, class 3) |
|
|
Power Consumption |
Max 12W |
|
|
Dimension & Weight |
1955mm x75mm x80mm, 1000 g |
|
|
Product Certification |
Safety: CE, FCC, IS/EN:60950-1, IS:13252 (Part 1): 2010, BIS Registered Immunity: FCC |
|
